Larger energy capacity
Longer cycle life
Lighter weight
High power
Wider temperature range
Superior Safety
Accurate power calculation
Application: Household energy storage,
outdoor power supply .etc
Model | LFP48100 | LFP51.2100 |
Electrical Parameter | ||
Rate voltage | 48V | 51.2V |
Rate capacity | 100AH | 100AH |
Energy | 4800Wh | 5120Wh |
Cycle life | > 4000 cycles 80% DOD | |
Internal Impedance | ＜50 mΩ | |
Designed life | 10 Years | |
Operating Parameter | ||
Charge voltage | 53.2V | 56.8V |
Charge current | 50A | 50A |
Max.Charge current | 100A | 100A |
Discharge cut-off voltage | 37.5V | 40V |
Discharge current | 50A | 50A |
Max.Discharge current | 100A | 100A |
Discharge temperature | -20~55℃ | |
Charge temperature | 0~55℃ | |
Storage temperature | -10~45℃ | |
Function items | ||
Parallel connection | Max 15P | |

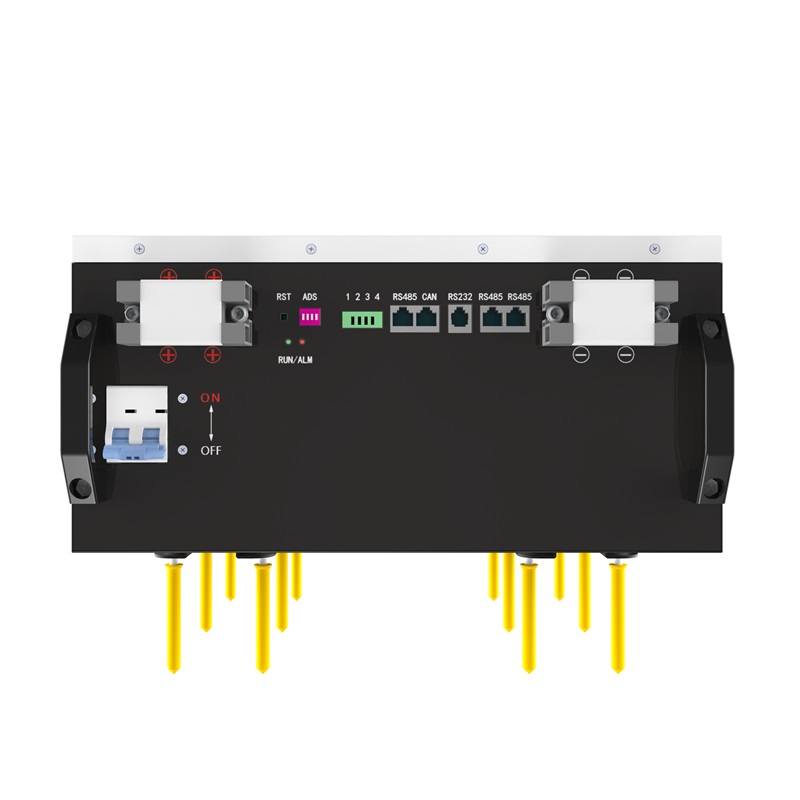

Communication port | RS485 / CAN / Dry contact | |
SOC display | LED | |
Display | LCD | |
Manchanical Parameter | ||
Terminal | M8 | |
Weight | 48KG | 50KG |
Dimension(Wx D x H)mm | 440x185x562 | 440x185x562 |
Protection | IP30 | |
Standard | ||
Certification | CE | |
