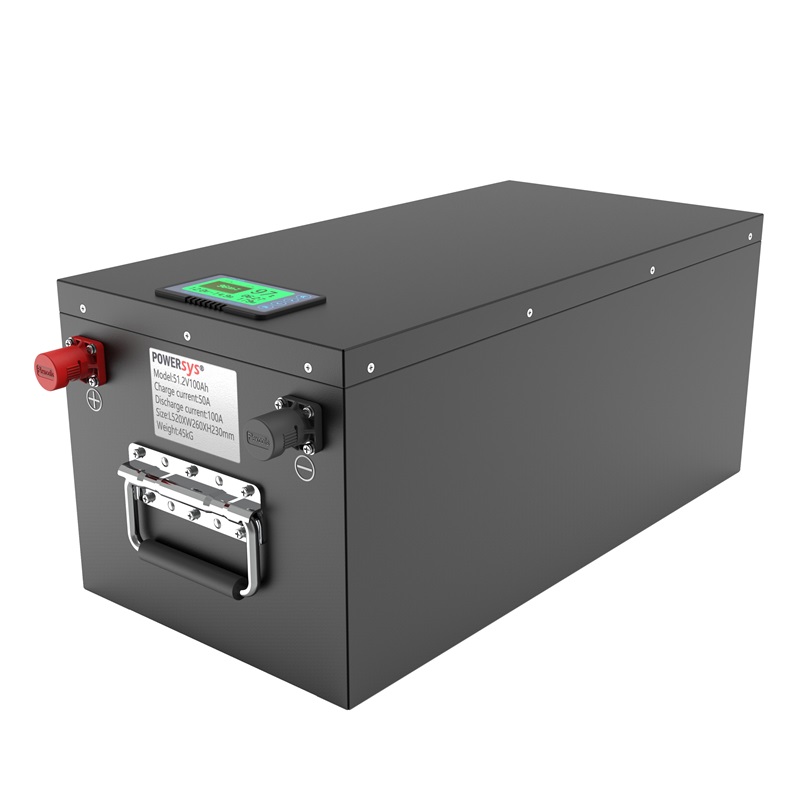

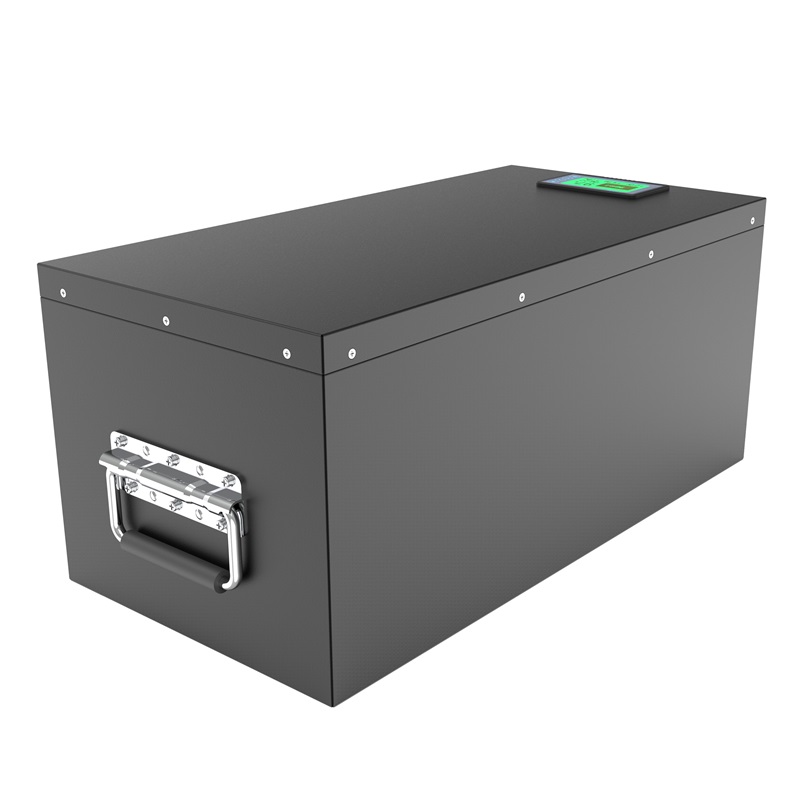

Golf Cart Battery
-
Rate voltage: 51.2V
Rate capacity(AH): 100 / 150 / 200
Cycle life: 4000
Weight(KG): 47 / 65 / 85
Dimension: LxWxH=520x260x230mm
Application: Golf carts, power cars .etc
Larger energy capacity
Longer cycle life
Lighter weight
High power
Wider temperature range
Superior Safety
Accurate power calculation
Application: Golf carts, power cars .etc
Model | LFP48100 | LFP51.2100 |
Electrical Parameter | ||
Rate voltage | 48V | 51.2V |
Rate capacity | 100AH | 100AH |
Energy | 4800Wh | 5120Wh |
Cycle life | > 3000 cycles 80% DOD | |
Internal Impedance | ＜50 mΩ | |
Operating Parameter | ||
Charge voltage | 53.2V | 56.8V |
Charge current | 50A | 50A |
Max.Charge current | 100A | 100A |
Discharge cut-off voltage | 37.5V | 40V |
Discharge current | 100A | 100A |
Max.Discharge current | 200A | 200A |
Max.Pluse Discharge current(＜0.3S) | 600A | 600A |
Discharge temperature | -20~55℃ | |
Charge temperature | 0~55℃ | |
Storage temperature | -10~45℃ | |
Function items | ||
Display | LCD | |
Manchanical Parameter | ||
Terminal | M8 / Anderson | |
Weight | 45KG | 47KG |
Dimension(Lx W x H)mm | 520x260x230 | 520x260x230 |
Protection | IP54 | |
Standard | ||
Certification | CE | |
